| Product outline | ||||||||||||||

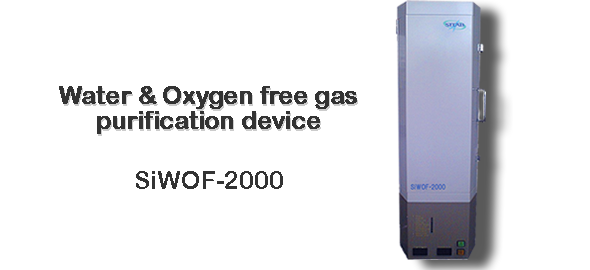

Water and oxygen free gas purification device (SiWOF-2000) are the new type gas purifiers adapting an oxygen ion conductor. Although continuation operation was difficult for moisture removal device, such as the conventional drier system, a cold lap system, and a filter system, since there is no restriction in the amount of dehumidification, and the amount of deoxidization theoretically, with this device, continuation operation of a long period of time (about one year) is possible. |
||||||||||||||
|
||||||||||||||
Feature and Function |
||||||||||||||
| ・Oxygen free (less than 1×10E-20atmO2) low dew point (less than DP-90℃) refining gas can be supplied continuously for a long period of time. ・Refining of inactive gas hydrogen gas (N2, Ar, etc.) can ce performed. ・Long-term continuation operation is possible. |
 |
|||||||||||||
| System | ||||||||||||||

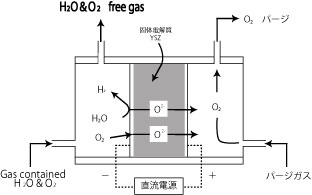

The electric moisture decomposition removing method using an oxygen ion conductor (Yttria Stabilized Zirconia) and an oxygen removal function are used. |
 |
|||||||||||||
| Specifications and Performance | ||||||||||||||
| Processing gas mass flow | 2.0ＳＬＭ（0.2ｍ3/ｈ） | |||||||||||||
| Processing gas loss | Inactive gas (helium,Ar,N2) and hydrogen gas |
|||||||||||||
| Processing gas pressure | 0 ～ 100kPa（gage pressure） | |||||||||||||
| Supply gas purity | An equivalent for the gas for industry (Less than 10ppmvH2O and O2) | |||||||||||||
| Refining gas purity | H2O…Less than 100ppbｖ（DP－90℃） O2…Less than 1×10E-20atm |
|||||||||||||
| Size | W270×D250×H1200 | |||||||||||||
| Weight | About 35kg | |||||||||||||
| Power supply | AC100V/1.5ｋVA | |||||||||||||
| Installation | Wall tapestry type (it is mount preparation with an exclusive caster at an option) |
|||||||||||||
