　　　Product outline

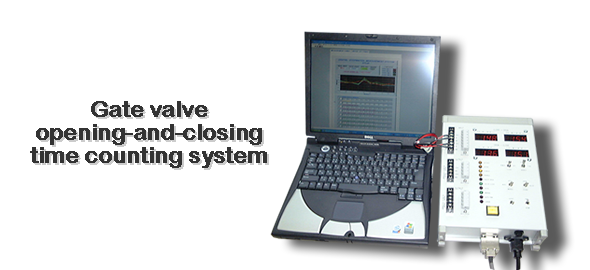

　This equipment is an opening-and-closingn time test system of the gate valve for vacuums.It consists of measurement software which transmits, displays and saves the measurement control box and measurement data which have a switching signal output of a gate valve, a valve opening-and-closing contact input signal and time measurement, and a control facility at a windows PC.

　　　Feature and Function

　　・A single-solenoid electromagnetic valve and double-solenoid correspond to an electromagnetic valve 　　　and corrrespond to DC24V and an AC100V drive power supply.
　　・There are a manual mode for which measurement of an examiner is possible at an arbitrary interval, 　　　and automatic mode which measures the opening-and-closing time of ten continuation at a fixed 　　　interval.
　　・Measurement mode, a valve opening-and-closing state, and a measurement result are displayed on 　　　the display on a measurement control box, and an LED lamp.
　　・Download automatic mode and a manual mode to the personal computer by which RS232C 　　　connection was made, and they seve measurement data as a numerical display, a graphical 　　　representation , and a text file.
