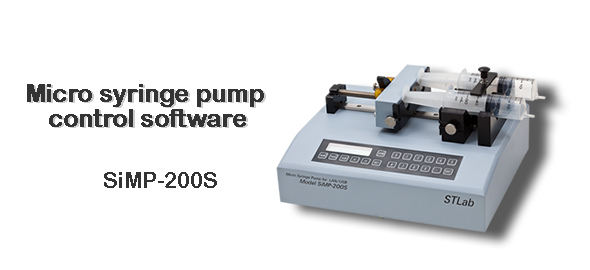

| Product outline | |||||||||||||||||
This program type control software and a high precision syringe pump are used for research and development and manufacture of medical supplies, chemicals, etc.,an animal experiment,etc.,and supply and suction of test liquid [ as he pleases ] and reaction liquid are possible. |
|
||||||||||||||||
| Feature and Function | |||||||||||||||||
| ・This software connects a Windows personal computer with the syringe pump by KDS ( series 200 ) in RS232C, and enables control of a maximum of four sets of pumps in a manual mode and program mode. ・In a manual mode, correspondence in all the operations by a main park keypad is enabled. ・In a program mode , create the arbitrary running profile by the capacity ( Infusion/Withdraw) time program and a flow time program, and free operation is enabled individually. |
|||||||||||||||||
|
|||||||||||||||||
| Specifications and Performance | Use field | ||||||||||||||||
(1)Manual mode |
 |
||||||||||||||||
| Mode of operation | １．２KW（four 300Wｘ） | ||||||||||||||||
| Flow unit | K type | ||||||||||||||||
| Capacity unit | Baking temperature, time, delay start | ||||||||||||||||
(2)Program mode |
|||||||||||||||||
| Time program | A capacity time program or flow time program ( total 4 ) | ||||||||||||||||
| The number of program steps | Unrestricted | ||||||||||||||||
| Step mode | A lamp(inclination), step(constant value operation) |
||||||||||||||||
| Flow unit | μl/min、μl/hr、ml/min、ml/hr | ||||||||||||||||
| Capacity unit | μl、ml | ||||||||||||||||
(3) Initial setup |
|||||||||||||||||
| Communication | RS232Cport setup | ||||||||||||||||
| Pump address setup | Arbitrary number of 0-99(a maximum of 4) | ||||||||||||||||
| Diameter setup of syringe | Main maker standard syringe data From all the 90 types to selection A setup of the diameter of arbitrary syringe with a manual is possible. (however,KDS syringe pump specification within the limits) |
||||||||||||||||
