| >>Infrared heat & oxygen-partial- pressure control micro chamber |
| |
|
|
| |
| Product outline |
|
|

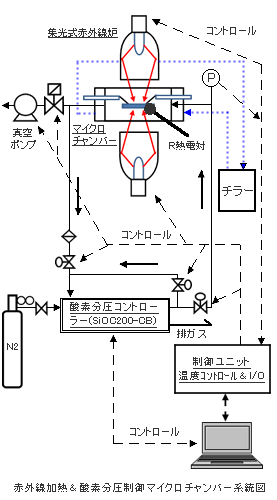

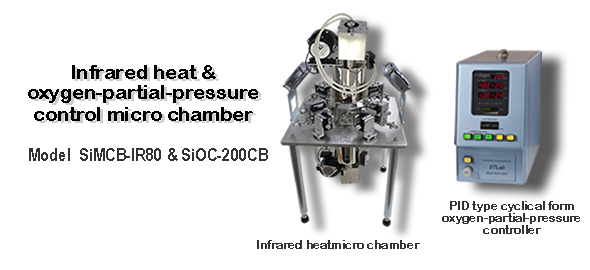

This equipment consists of four pairs of measurement microprobes, a micro chamber of type corresponding to the high vacuum which has an infrared oven of two upper and lower sides, and a PID type cyclical form oxygen-partial-pressure controller, It is a system in which a maximum of 1200℃ of rapid heating is possible in oxygen partial pressure about 1-10E-30atm and the sample temperature of 1 inch.
|
|
| |
|
| Specifications and Performance |
|
| |
|
|
| 【Infrared micro chamber】 |
|
|
| Chamber size |
phi152mm×80mm（internal phi100×50ml） |
|
| Sample size |
maxphi25.4×t2mm |
| Sample holder |
Product made from ＳｉＣ |
| Window of source container |
Silica glass （two upper and lower sides,、phi100×t6mm） |
| Attainment vacuum |
１０Ｅ－６Ｐａ |
|
| Microprobe |
Platinum plating tungsten （tip 50micronR） |
|
| Prove move method |
３ axis（X,Y,Z）stage |
|
| Infrared oven |
Condensing heating system （2kW/set） |
|
| Condensing size |
phi30mm（focal length of 80mm） |
|
| Highest temperature |
Not less than １２００℃ |
|
| Outside dimension |
W364×H700×D364 |
|
| 【ＰＩＤ type oxygen-partial-pressure controller】 |
|
| Oxygen-partial-pressure control device |
１-１０Ｅ-３０atm／ＣＢ type |
|
| Processing gas kind |
Inactive gas （N2, Ar, He, etc.） |
|
| Processing gas mass flow |
２００ＳＣＣＭ |
|
| Oxygen-partial-pressure control system |
Zirconia type oxygen pump |
|
| Oxygen-partial-pressure setup |
Digital type |
|
| External monitor control and software |
Pre-attachment |
|
| Monitor item |
Oxygen partial pressure, line pressure |
|
| Control item |
Oxygen partial pressure, external channel change |
|
| Outside dimension |
W220×H378×D570 |
|
|
|
