| Product outline |
|
|

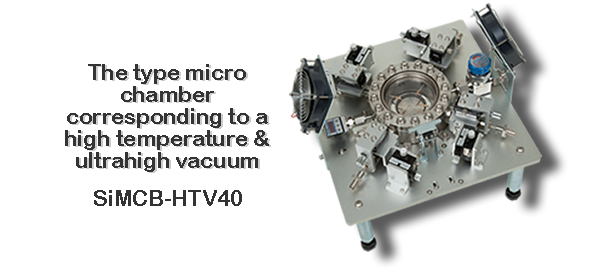

They are high temperature, an ultrahigh vacuum, and a micro chamber made from stainless steel corresponding to ultra low oxygen environment. 4 sets of measurement probes can be positioned with high precision by 3 axis (X,Y,Z) stage, and a maximum of 800℃ heating is possible for them by a heating sample stand with a built-in thermocoax heater. furthermore, attainment vacuum 1x10E-6Pa high vacuum atmosphere is acquired by an attached turbo molecular drag pump.
|
|
| |
|
| Feature and Function |
|
・It is a type micro chamber corresponding to the ultrahigh vacuum(1x10E-6Pa)of "leak zero."
・A maximum of 800℃ high temperature heating is possible.
・An experiment in the ultra low oxygen 1-10E-30atmO2 atmosphere is also possible in combination with a PID type oxygen-partial-pressure controller(product made from STlab).
・Positioning of a measurement probe is possible with high precision by 3 axis stage(X,Y,Z).
・Thyristors control type heater heating power supply is attached.
・An external temperature control program is attached.
・A turbo molecular drag pump with a try pump is attached.
|
|
|
| |
|
|
|
| Specifications and Performance |
|
|
| |
|
|
| Sample stand temperature |
max800℃（500℃） |
|
|
| Heater |
200W thermocoax heater |
|
| Thermoregulator |
Program thermoregulator
(19 patterns/19 steps) |
|
| Attainment vacuum in a chamber |
Level of 10E-6 Pa(at however,the time of TMP direct connection) |
|
| Leak rate |
Below 1×10E-10Pa and cube meter/sec |
|
| Exhaust |
35with dry cleaning pump L /sec turbo molecular drag pump |
|
| Measurement probe |
Tungsten（20micro of tips mR, 4 sets） |
|
|
| Probe migration length |
±12mm of X-axis, ±7mm of Y-axes, ±7mm of Z-axes |
|
| Current introduction terminal |
A maximum of-16.5A(1 set) |
|
| Thermo couple |
K type（1set） |
|
| Size |
W350×D315×H120 |
|
| Weight |
about 12kg |
|
| |
|
|
|
|
|
